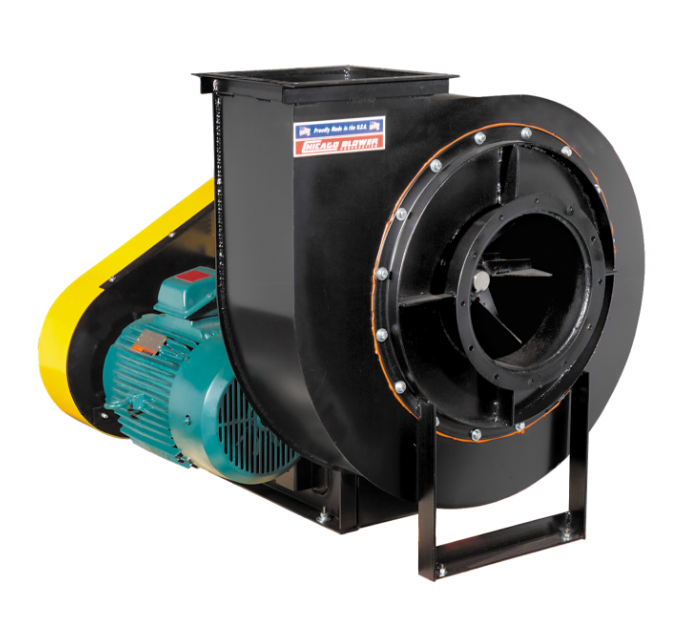

ICF Industrial Fans
Thousands of industrial fan requirements worldwide have been resolved with Chicago's Industrial Centrifugal Fans. With the availability of two types of rugged radial wheels, the fans handle a wider spectrum of harsh airstreams and materials. The two housing designs further assure compatibility with specific applications and installations.
Literature
Product Bulletin: ICF
Operation & Maintenance Manual: Industrial Centrifugal Fans
ICF Industrial Fan Applications
Chicago's ICF fans are equipped with 6-bladed steel radial wheels designed for the toughest industrial environments. Flat blade surfaces prevent material build-up or deposits and are easy to clean. Wheels are statically and dynamically balanced for smooth long-lasting operation, keyed to the shaft and secured with multiple set screws. Most fan sizes can be ordered with either the Wool-Fiber wheel or the Long-Shavings wheel.
Fan Options
  • Punched flanged inlet
  • Punched flanged outlet
  • Access doors
  • Shaft cooler and guard
  • Split housings
  • Spark resistant construction
  • Outlet dampers
  • Unitary base
  • Inlet box
  • Shaft seal
  • Bearing and shaft guard
  • Extended grease fittings
  • Belt guard
  • Inlet screen
  • Housing drain
Features
  • Chicago LS wheel
  • Chicago WF wheel
  • Steep pressure characteristics
  • Adjustable discharge positions
  • Rugged steel housing
  • Flanged outlet
  • Removable bearing brackets
  • Precision shafts
  • Adjustable motor bases
  • Four-way gusset
Performance
  • Sizes: 7 to 41
  • Volumes to 120,000 CFM
  • Pressures to 40” wg
  • Temperatures to 800°F
