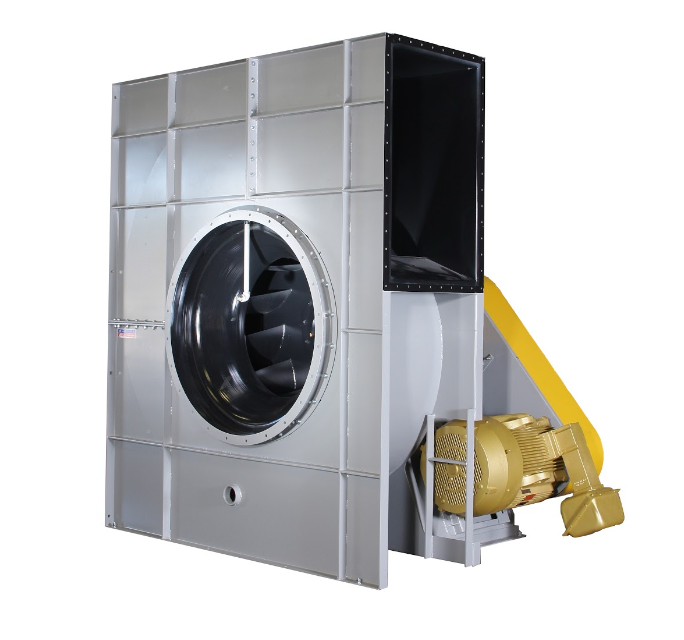

Industrial Radial Tip (IRT) Fans

Chicago's Industrial Radial Tip (IRT) fan offers exceptional efficiency, performance, reliability and versatility with a choice of belt drive or direct drive arrangements. Nine standard models from size 3000 to 6000 provide pressures to 30" WG and capacities to 116,000 CFM at temperatures up to 800°F. Performance ratings are based on tests made in accordance with AMCA standard 210 and AMCA standard 300.

Literature

Product Bulletin: IRT

Operation & Maintenance Manual: Heavy Duty Fans

Industrial Radial Tip Fan Applications

Chicago's IRT fan was designed specifically for demanding heavy-duty applications, including hot gasses and fumes, induced draft, process exhaust and light concentrations of solids in a variety of industries. The IRT combines the advantages of the radial and backward inclined industrial fan blades and replaces the traditional light-duty exhauster with a more rugged, longer life span. It will handle moderate to high pressures and temperatures and has a static efficiency capability of 76%.

Fan Options

Shaft guard
Shaft cooler and Guard
Bolt-on inlet box
Flanged inlet
Access door
Bottom horizontal discharge
501° to 800° Fahrenheit Construction
Pre-spin inlet box damper
Mounted belt guard

Features

Self cleaning radial tipped fan wheel
Forward tipped radial blades handle moderate to high pressures
Unique square housing offers the versatility of three discharge positions
Rugged, continuously welded heavy steel plate construction with split housing standard
Oversize shaft and bearings
Belt or direct drive to suit system needs

Performance

Sizes: 3000 to 6000
Volumes to 160,000 CFM
Pressures to 33” wg
Temperatures to 800°F
