Single Width Fans

Single Width

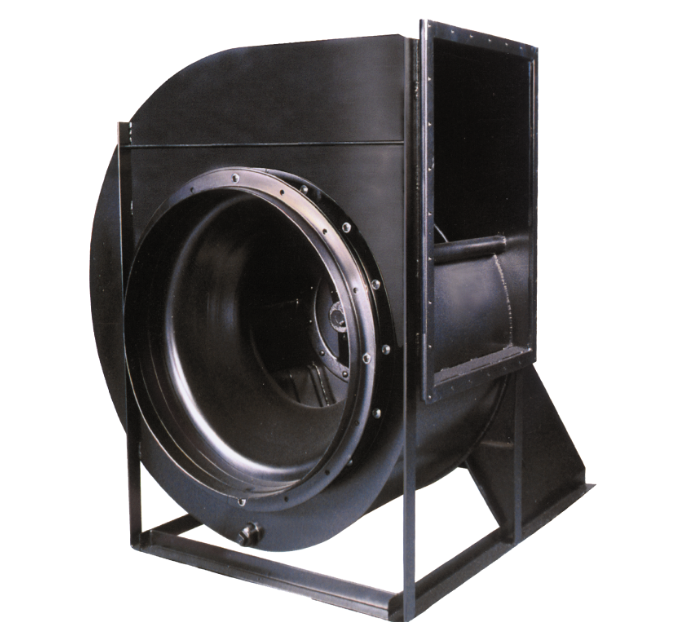

Widely recognized for design efficiency and integrity, Chicago's Design 51 Single Width airfoil wheel has ideal characteristics for variable air volume systems. The fan's deep spun inlet and hyperbolic wheel cone plus generous housing proportions provide a smooth stable air flow over the entire performance range. Precision balancing assures quieter vibration-free operation that adds to the overall reliability and performance of Chicago's Design 51 Single Width airfoil fans.

Literature

Product Bulletin: DFOS

Operation & Maintenance Manual: Industrial Centrifugal Fans

Single Width Fan Applications

The heart of Chicago's Design 51 centrifugal fan is the airfoil wheel, the most efficient type for clean air applications. This fan has an enviable reputation for performance and reliability in a multitude of applications, including industrial supply or exhaust systems. The Design 51 Single Width is a rugged fan built to Chicago's industrial level of quality and long-term dependability.

Fan Options

Punched flanged inlet
Punched flanged outlet
Drain
Cleanout door
Inlet screen
Shaft cooler and guard
Shaft and bearing guard
Spark resistant construction
Split inlet
Shaft seal
Inlet volume control
Horizontal split housing
Mount motor and drive
Companion flanges
Mounted belt guard
Extended grease tube fittings

Features

High efficiency hollow bladed wheel
Efficiencies over 80%
Stable air flow over entire performance range
Spun steel wheel cone optimizes air flow
Rugged industrial strength construction
Horizontal or vertical installation

Performance

Sizes: 135 to 807
Volumes to 240,000 CFM
Pressures to 22” wg
Temperatures to 850°F

Alternate Fan Designs

For Greater CFM

AF/BC Custom Heavy Duty Fans

For Higher Pressure

Packaged Forced Draft Fans

Industrial Airfoil Fans
