Plenum Fans

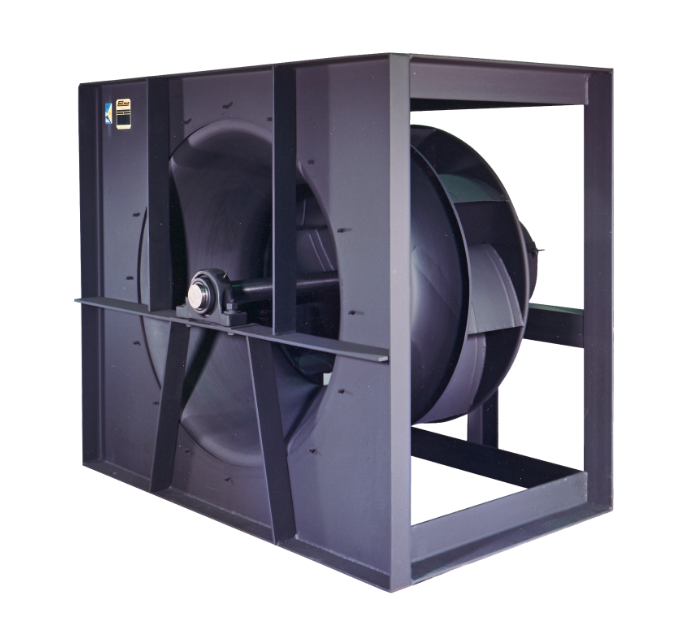

Chicago's Plenum Fan offers a practical, economical design alternative for air handling and conditioning systems. It features an unhoused true airfoil bladed wheel that installs directly within the plenum, thereby eliminating the downstream discharge. The fan can be installed either horizontally or vertically.
Literature
Product Bulletin: DFOP
Operation & Maintenance Manual: Industrial Centrifugal Fans
Plenum Fan Applications
Without the conventional scroll, the Plenum Fan provides the required performance in less space. It is therefore ideal for retrofit applications where system performance needs to be expanded and more space is not available. For either supply fan, return fan or exhaust fan applications, rely on the performance and durability of Chicago Airfoil Plenum Fans.
Fan Options
  • Inlet screen
  • Inlet volume control
  • Wheel guard
  • Mounted belt guard A/3H
  • Extended grease fittings
  • Mounting motor and drive
Features
  • High efficiency hollow bladed airfoil wheel
  • Unhoused wheel installs within the plenum to eliminate downstream discharge
  • Spun steel wheel cone optimizes air flow
  • Stable air flow over entire performance range
  • Horizontal or vertical installation
  • Rugged industrial strength frame
  • Integral lifting hooks
  • AMCA certified performance for air and sound
Performance
  • Sizes: 135 to 807
  • Volumes to 230,000 CFM
  • Pressures to 17” wg
  • Temperatures to 140°F
