Single Width Fan Kits

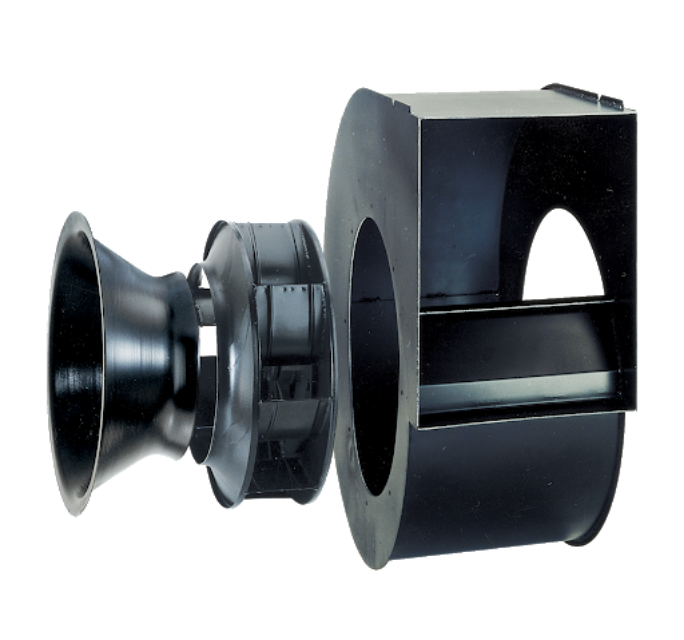

Chicago Blower's Airfoil Fan Kits provide the user with the flexibility to custom build a fan from individual components to meet their specific air performance and configuration requirements. With its airfoil wheel, the Fan Kit is efficient, economical and versatile. Among the components offered are airfoil wheels, inlet cones with or without integral vanes, housings and shaft coolers, as well as shafts and bearings.

Literature

Product Bulletin: SAFK

Operation & Maintenance Manual: Fan Kit Components

Single Width Airfoil Fan Kit Applications

Any supply air or clean exhaust application is ideal for Chicago's Airfoil Fan Kit. The Fan Kits fill most general industrial and commercial air moving needs, including installations handling lint dust, fumes or moisture. Applications include ovens, dryers and kilns as well as penthouses, plenums and panel walls.

Fan Options

100% Width housings
72% Width housings
RA Housings
100% Width inlet cones
72% Width inlet cones
Inlet volumes controls
Shaft cooler assembly

Features

Aerodynamic airfoil wheels feature hollow blades with weep holes to prevent moisture retention
Full width housings or 72% width to fit narrower plenums
Standard and RA design for lower pressures
Matching inlet cones for either width
Inlet Volume Controls are ideal for variable volume systems
Shaft cooler assembly consists of steel cone and aluminum shaft cooler
Shafts and bearings also available

Performance

Sizes: 100 to 490
Volumes to 158,000 CFM
Pressures to 20” wg
Temperatures to 800°F

Alternate Fan Designs
