High Pressure Backward Curved

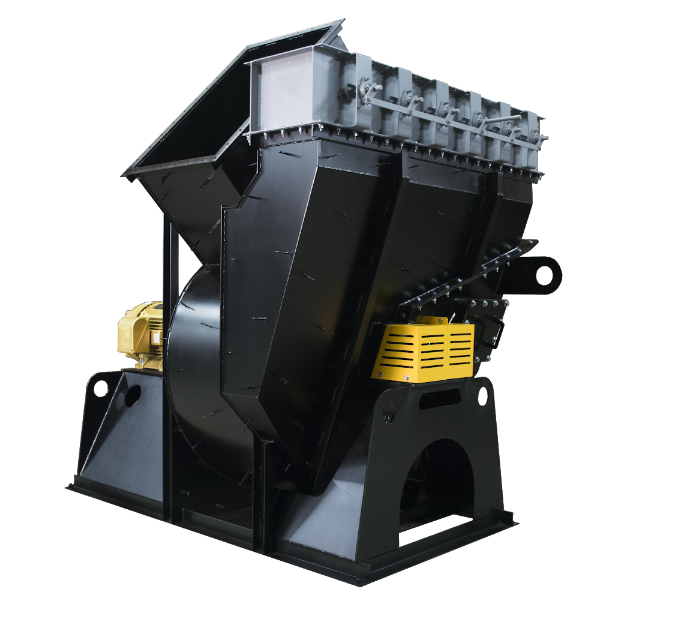

Chicago Blower's Design 95 High Pressure Backward Curved is an industrial backward curved fan with well-known durability and established performance. Available as a pre-engineered fan line, it delivers the reliability of a custom designed fan at the price and lead time of a standard industrial fan in production.
Literature
Product Bulletin: BCHP
Operation & Maintenance Manual : Heavy Duty Fans
High Pressure Backward Curved Fan Applications
Whatever your needs are, the Design 95 High Pressure Backward Curved Fan has the flexibility to fit your application. The wheel uses heavy backward curved industrial fan blades designed to handle dusty and harsh environments. The solid steel blades are also ideal for custom applied corrosion resistant coatings making the Design 95 HPBC even more versatile. Typical applications include dust collectors, thermal oxidizers, emission control systems, fume exhausters, and air filtration systems. The High Pressure Backward Curved Fan can also be used in clean air applications, such as general ventilation, exhaust, forced or induced mechanical draft, air recirculation, and drying.
Fan Options
  • Punched flanged or slip inlet
  • Punched flanged or slip outlet
  • Drain
  • Cleanout door
  • Inlet screen
  • Shaft cooler and guard
  • Shaft and bearing guard
  • Punched flanged or slip inlet
  • Shaft Seal
  • Split housing (horizontal or pie-shaped wedge)
  • Mounted motor and drive or coupling
  • Inlet Box
  • AWS code welding
  • Inlet or outlet dampers
  • Inlet volume control
  • Belt guard
Features
  • High efficiency backward curved wheel design
  • Class V construction
  • Maximum Fan Efficiency Grade (FEG) of 90
  • Mechanical efficiencies over 84%
  • Rugged steel housing and pedestal
Performance
  • Sizes: 182 to 890
  • Volumes to 385,000 CFM
  • Pressures to 40” wg
  • Temperatures to 800°F
Alternate Fan Designs
For Higher Pressure
