High Efficiency Plug Fans

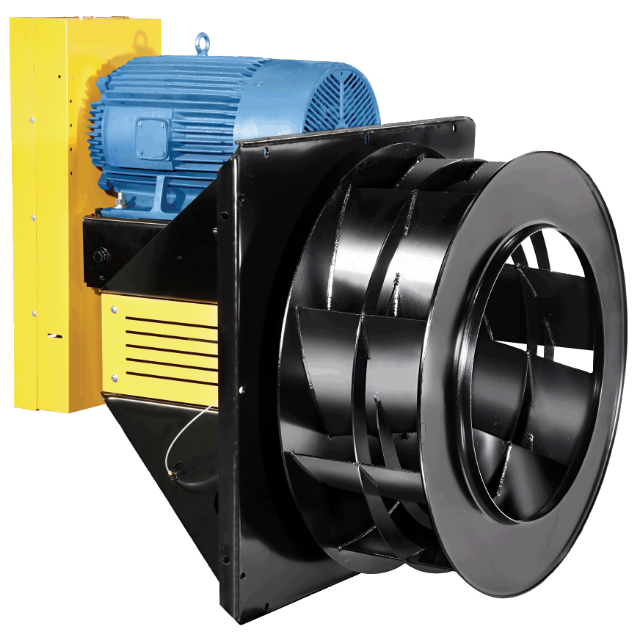

The Design 70 wheel was developed for open wheel installations and utilizes a solid, single surface airfoil blade to provide Chicago’s Plug Fan with one of the industry’s highest efficiencies. With reduced horsepower requirements, energy savings are significant, up to 84% efficient. Although the Design 70 High Efficiency Plug Fan has ambient air applications, it is typically utilized for temperatures up to 1000°F. For higher temperatures consult the factory. Sound levels are generally low over the entire performance range.
Literature
Product Bulletin: BCPF
Operation & Maintenance Manual: Industrial Plug Fans
High Efficiency Plug Fan Applications
Chicago’s new compact Design 70 Plug Fan is designed for high temperatures to 1000°F, typically industrial ovens, kilns, and industrial dryers, anywhere airstreams need to be recirculated.
Fan Options
  • Housings
  • Safety Guards
  • Shaft Seal
  • Shaft Cooler
  • Extended Lubrication Lines
Features
  • High Temperature Construction
  • Stainless Steel Construction
  • Insulated Plug Panels
  • AMCA Spark Resistant Construction
  • Integral Inlet Cone Assembly
Performance
  • Sizes: 12-60
  • Volumes to 156,000 CFM
  • Pressures to 20” wg
  • Temperatures to 1000°F
