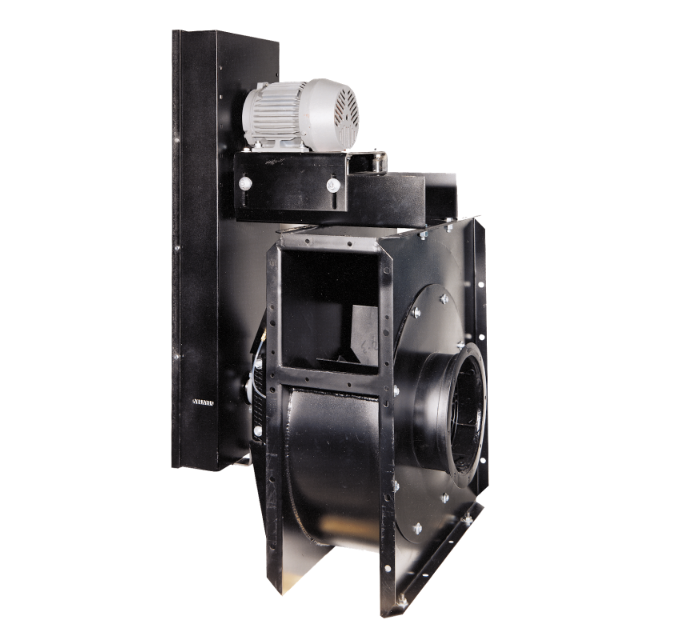

SQI Industrial Fans
Chicago Blower's SQI Industrial Fan is a high performance, trouble free fan proven in a multitude of industrial applications. With its radial wheel and square housing design, the SQI is efficient, economical and versatile. It is also quickly available through Chicago's Quick Ship Fan program. "Packaged" fans, those furnished with motor, V-belt drive, belt guard and other options, are factory aligned, run tested and shipped ready to install.
By eliminating jobsite assembly, the packaged SQI fan can substantially reduce overall installation cost.
Literature
Product Bulletin: SQI
Operation & Maintenance Manual: Industrial Centrifugal Fans
SQI Industrial Fan Applications
The SQI wheel with radial blades is designed to handle various types of materials, long fibers or other stringy material as well as sticky, heavy or abrasive dust airstreams. Typical applications include conveying, induced draft, industrial ovens, and similar high temperature installations to 650°F. For greater safety in explosive environments, spark resistant construction is offered. Lint-free construction, in which housing hardware is reversed to limit obstructions in the airstream, minimizes lint build-up. The versatile SQI Industrial Fan is furnished in eight sizes in Arrangements 1, 9, 9H.
Fan Options
  • Punched flanged inlet
  • Punched flanged outlet
  • Housing drain
  • Cleanout door
  • Inlet screen
  • Mounted belt guard
  • Shaft cooler and guard
  • Shaft and bearing guard
  • Type "B" spark resistant construction
  • Type "C" spark resistant construction
  • Lint free construction
  • Extended grease tube fittings
  • Shaft seal
  • A/9 Mount motor and drive
  • Insulation studs
  • Wool-Fiber wheels
  • Companion flanges
  • Split pillow block (H) bearings
  • Arrangement 8
  • Box on inlet box
  • Corten wheel construction
Features
  • Chicago LS wheel
  • Chicago WF wheel
  • Steep pressure characteristics
  • Adjustable discharge positions
  • Rugged steel housing
  • Flanged outlet
  • Removable bearing brackets
  • Precision shafts
  • Adjustable motor bases
  • Four-way gusset
Performance
  • Sizes: 5 to 17
  • Volumes to 17,000 CFM
  • Pressures to 19” wg
  • Temperatures to 650°F
